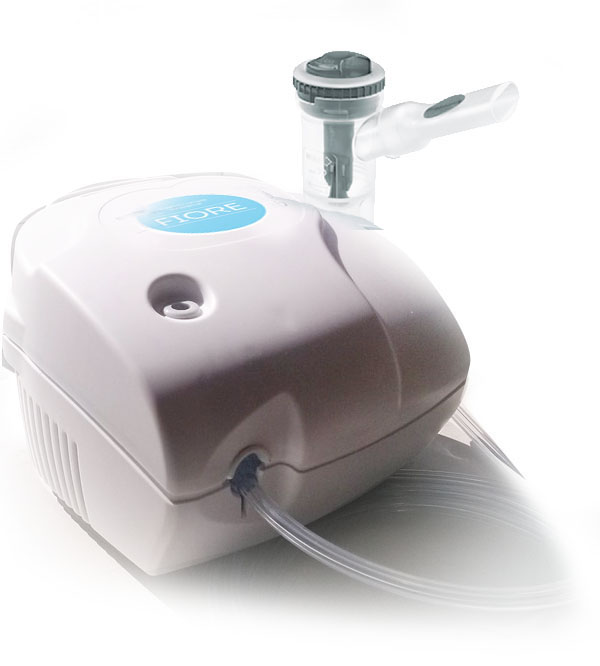

Model NM-F400, compact
THE DEVICE COMES EQUIPPED WITH
- Aerosol therapy unit (main unit)
- Power supply cord
- RF8 nebulizer x1
- Child nasal prong x1
- Adults nasal prong x1
- Mouthpiece x2
- Soft Touch adult mask x1
- Soft Touch child mask x1
- Valve x1
- Air filter x2
- Air tube (2 m) x1
GENERAL DESCRIPTION
The new compact model designed for frequent use at home. The device provides fast delivery of drugs through a nebulizer RF8, while providing optimal nebulization.
Thanks to noiseless operation and the possibility to regulate the delivery rate of drugs, this model is an ideal choice for use at home for the whole family. The extra soft Soft Touch mask provides more comfortable treatment.
CE marking guarantees high quality and reliability of the device.
INDICATIONS
- The necessity of local therapy for the airways, which appears together with the following diseases:
upper respiratory tract infections (Rhinitis, Pharyngitis, Laryngitis, Tracheitis) and the related complications (Rhinosinusitis, Laryngo tracheitis), acute and chronic bronchitis, bronchial asthma - Immune system reinforcement
- Post-operative complicaitons prevention
TECHNICAL DATA
| Voltage: | 230 V ~ 50 Hz 140 VA |
| Max pressure: | 1.8 ± 0.3 bar |
| Compressor air output: | 9 l/min approx. |
| Sound level (at 1 m): | approx. 54 dB (A) |
| Dimensions (WxDxH): | 16 x 16,5 x 11,5 cm |
| Weight: | 1.3 kg |
RF8 NEBULIZER
| Medication minimum capacity [ml] |
Medication maximum capacity [ml] |
(1) Operating pressure [bar] |
(1) Delivery [ml/min] (approx.) |
(2) MMAD [μm] |
(2) BREATHABLE FRACTIONS < 5 μm (FPF) % |
| 2 | 8 | 0,8 | 0,40 | 4,48 | 55,5 |
(1) Values measured according to Manufacturer’s internal procedure I29-P07.5 Delivery rate values can change depending on the patient’s respiratory capacity.
(2) In vitro testing certified by TÜV Rheinland LGA Products GmbH – Germany in compliance with the European Standard EN 13544-1 for nebulising systems. Further details available on request.
